The Adnaco-S5 Gen2 20GT/s PCIe Expansion System allows system integrators to operate one PCIe x1, x4, x8 and x16 Gen1/Gen2 add-in card over fiber optic cable at distances up to 500+ meters from the location of the computer system. No additional host software drivers are required during installation or operation. Any type of PCI Express cards can be used including audio, video, graphics, USB, FireWire, SATA, data-acquisition, network and others.

$999.00

All prices in USD

Looking for a different configuration? See the Ordering Guide below and email us at sales@adnaco.com to order custom options.
Quantity

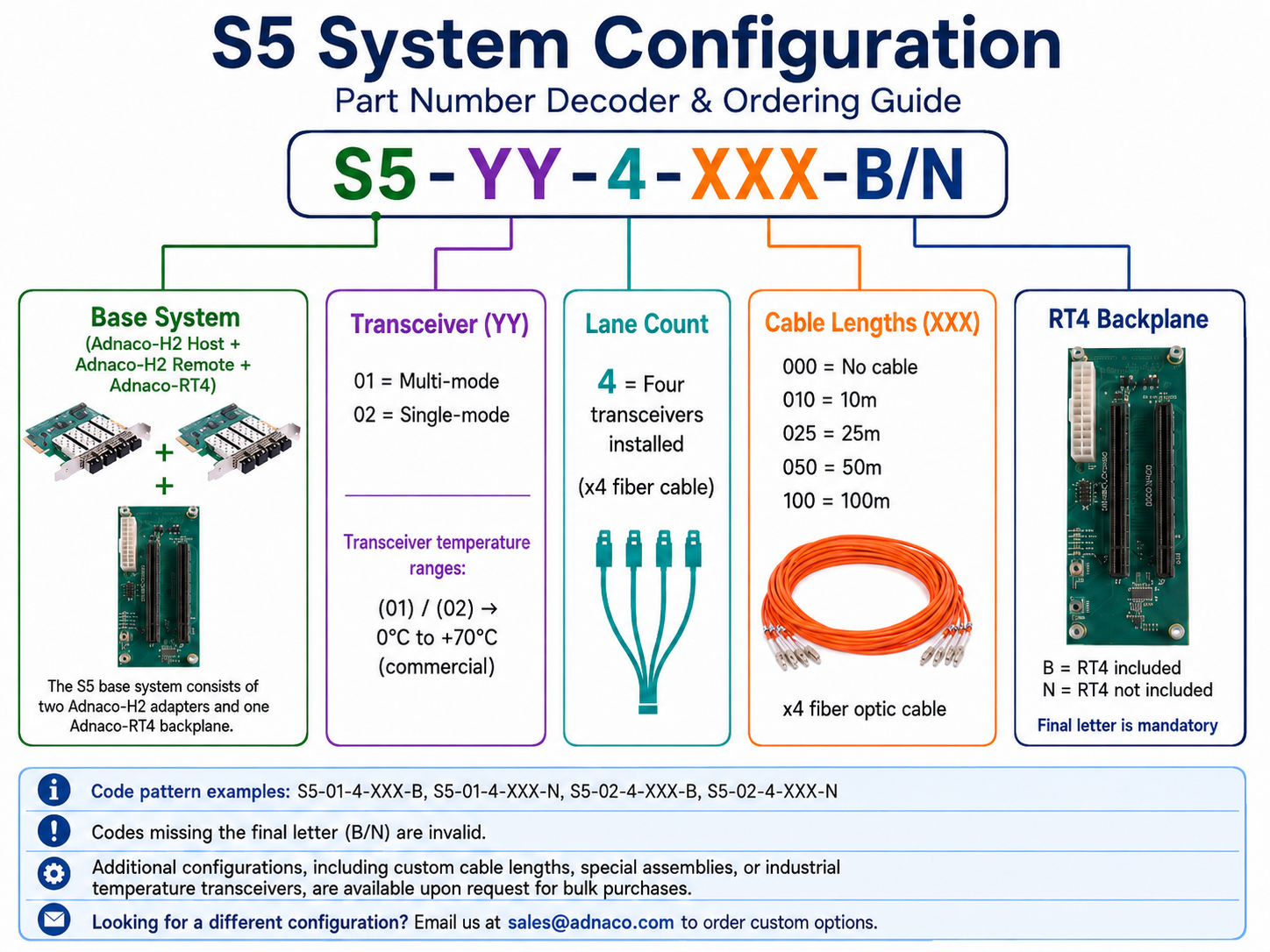

ORDERING GUIDE

Transceiver (YY)

Lane Count

Cable Lengths (XXX)

RT4 Backplane

Code Pattern

Multi-mode  (01)

4

000 / 010 / 025 / 050 / 100

With RT4 (B)

S5‑01‑4‑XXX‑B

Multi-mode  (01)

4

000 / 010 / 025 / 050 / 100

Without RT4 (N)

S5‑01‑4‑XXX‑N

Single mode (02)

4

000 / 010 / 025 / 050 / 100

With RT4 (B)

S5‑02‑4‑XXX‑B

Single mode (02)

4

000 / 010 / 025 / 050 / 100

Without RT4 (N)

S5‑02‑4‑XXX‑N

Notes:

Transceiver temperature ranges:
•    (01) / (02) → 0°C to +70°C (commercial)

Lane count:
•    4 → Four transceivers installed (x4 fiber cable)

RT4 Backplane (mandatory letter*):
•       B → RT4 included
•       N → RT4 not included


*Codes missing the final letter (B/N) are invalid.


Additional configurations, including custom cable lengths, special assemblies, or industrial temperature transceivers available upon request for bulk purchases.

SYSTEM CONSISTS OF

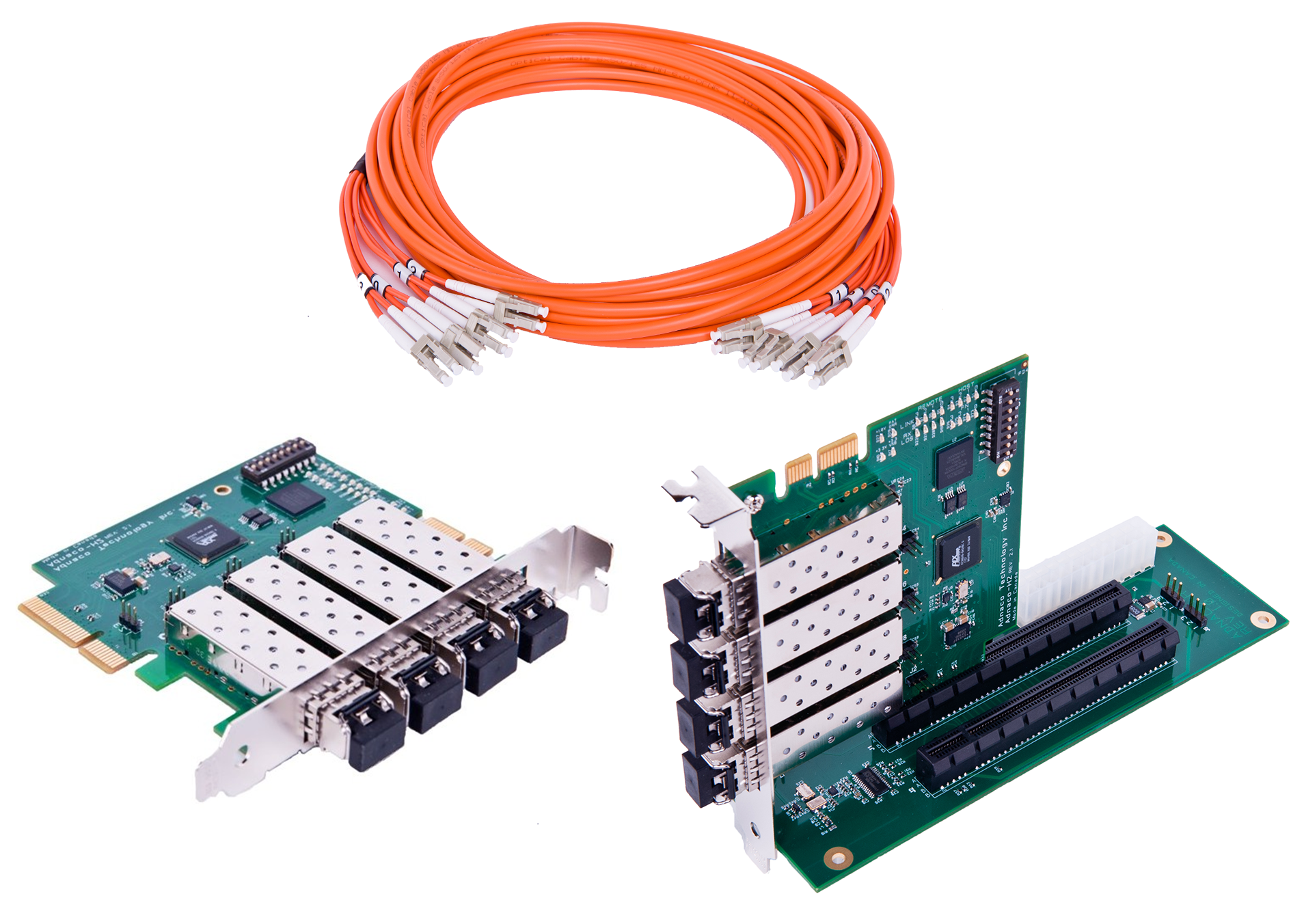

• Adnaco-H2-01/02-H: Host Adapter with 4 multi-mode or single mode transceivers and standard height bracket
• Adnaco-H2-01/02-R: Remote Adapter with 4 multi-mode or single mode transceivers and standard height bracket
• Adnaco-RT4: Backplane: single universal PCIe slot compatible with x1, x4, x8, and x16 cards
• Adnaco-FC1-4: Fiber optic cable – optional

PRODUCT FEATURES
  • Backplane with 1 PCIe x16 slot (electrical x4)
  • 20 GT/s data rate over fiber optic using 4 PCIe Gen 2 lanes
  • Optical isolation
  • Standard pluggable SFP+ transceivers
  • Backplane can be mounted in any standard ATX or microATX case
  • Operating temperature standard option: 0° to +70° C
  • Processor and OS independent and tested with:

- Windows x86/x64: XP, 7, 8, 8.1, 10, 11
- Linux x86/x64, ARM32/64
- VxWorks, Mac OS

DATASHEETS

Adnaco-S5 Datasheet

Adnaco-S5 Quick Start Guide

Adnaco-S5 User’s Guide

Adnaco-H2 Datasheet

Adnaco Products Performance Guide

Detail system information: adnaco.com/products/s5/

For other configurations, please see Adnaco-S5 Datasheet or contact us at adnaco.com/contact-us/
