Name: Adnaco-S1A PCI/PCIe Gen 2 Expansion System
Brand: Adnaco Technology Inc.
SKU: S1A-01-000-S
Price: 769.0 USD
Availability: InStock

Adnaco-S1A PCI/PCIe Gen 2 Expansion System

Adnaco-S1A PCI/PCIe Gen 2 Expansion System

The Adnaco-S1A Gen2 5GT/s PCI/PCIe Expansion System allows system integrators to operate 2 PCI and 2 PCIe add-in cards over fiber optic cable at distances up to 1000+ meters from the location of the computer system. No additional host software drivers are required during installation or operation. Any type of PCI and PCI Express cards can be used including audio, video, graphics, USB, FireWire, SATA, data-acquisition, network and others. The System consists of a PCIe host adapter, a fiber optic cable, an I/O shield for ATX case and a PCI/PCIe backplane.

$769.00

All prices in USD

Looking for a different configuration? See the Ordering Guide below and email us at sales@adnaco.com to order custom options.

Select option

Product variants

Quantity

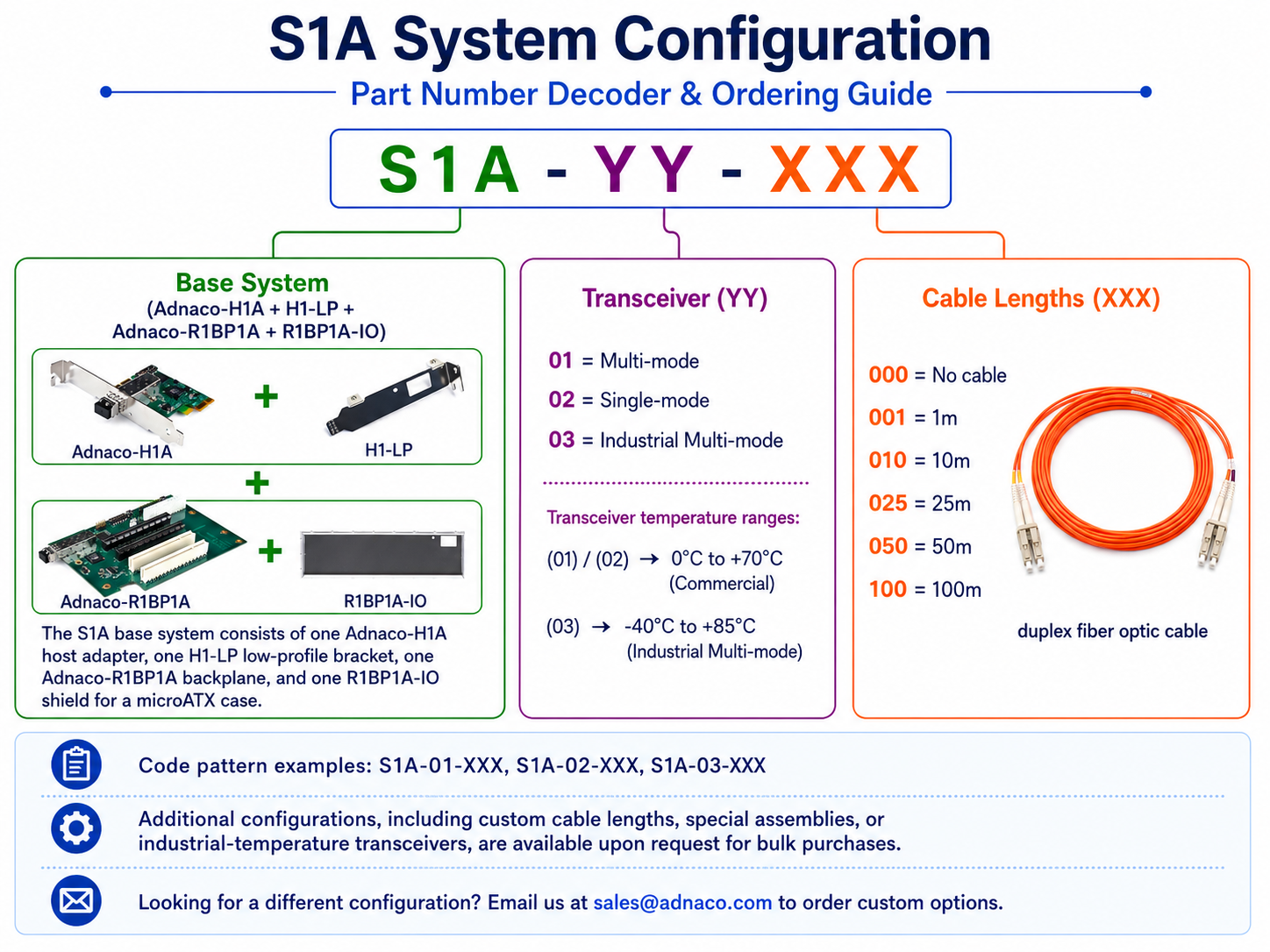

ORDERING GUIDE

Transceiver	Cable Lengths (XXX)	Code Pattern
Multi‑mode (01)	000 / 001 / 010 / 025 / 050 / 100	S1A‑01‑XXX
Multi‑mode (01)	000 / 001 / 010 / 025 / 050 / 100	S1A‑01‑XXX
Single‑mode (02)	000 / 001 / 010 / 025 / 050 / 100	S1A‑02‑XXX
Single‑mode (02)	000 / 001 / 010 / 025 / 050 / 100	S1A‑02‑XXX
Industrial Multi‑mode (03)	000 / 001 / 010 / 025 / 050 / 100	S1A‑03‑XXX
Industrial Multi‑mode (03)	000 / 001 / 010 / 025 / 050 / 100	S1A‑03‑XXX

· Transceiver temperature ranges:

o (01) / (02) → 0°C to +70°C (Commercial)

o (03) → −40°C to + 85°C (Industrial Multi‑mode)

· Additional configurations, including custom cable lengths, special assemblies, or industrial‑temperature transceivers available upon request for bulk purchases.

SYSTEM CONSISTS OF

• Adnaco-H1A: Host adapter
• Adnaco-H1‑LP: Low‑profile bracket for H1A
• Adnaco-R1BP1A: Backplane with 2 PCIe and 2 PCI slots
• Adnaco-FC1: LC‑LC duplex fiber optic cable (optional)
• Adnaco-R1BP1A‑IO: I/O shield
