Name: Adnaco-S3B USB 3.0 Extension
Brand: Adnaco
SKU: S3B-01-000-P-E
Price: 499.0 USD
Availability: InStock

Adnaco-S3B USB 3.0 Extension

The Adnaco-S3B system includes a remote standard USB 3.0 host controller that can operate at distances up to several kilometers (depending on the types of transceivers and cables, contact us for details) from the location of your computer. Powered by Adnaco PCIe over-fiber-optic technology, the Adnaco-S3B is designed to suit many applications with the standard USB 3.0 host interface.

$499.00

All prices in USD

Looking for a different configuration? See the Ordering Guide below and email us at sales@adnaco.com to order custom options.

Select option

Product variants

Quantity

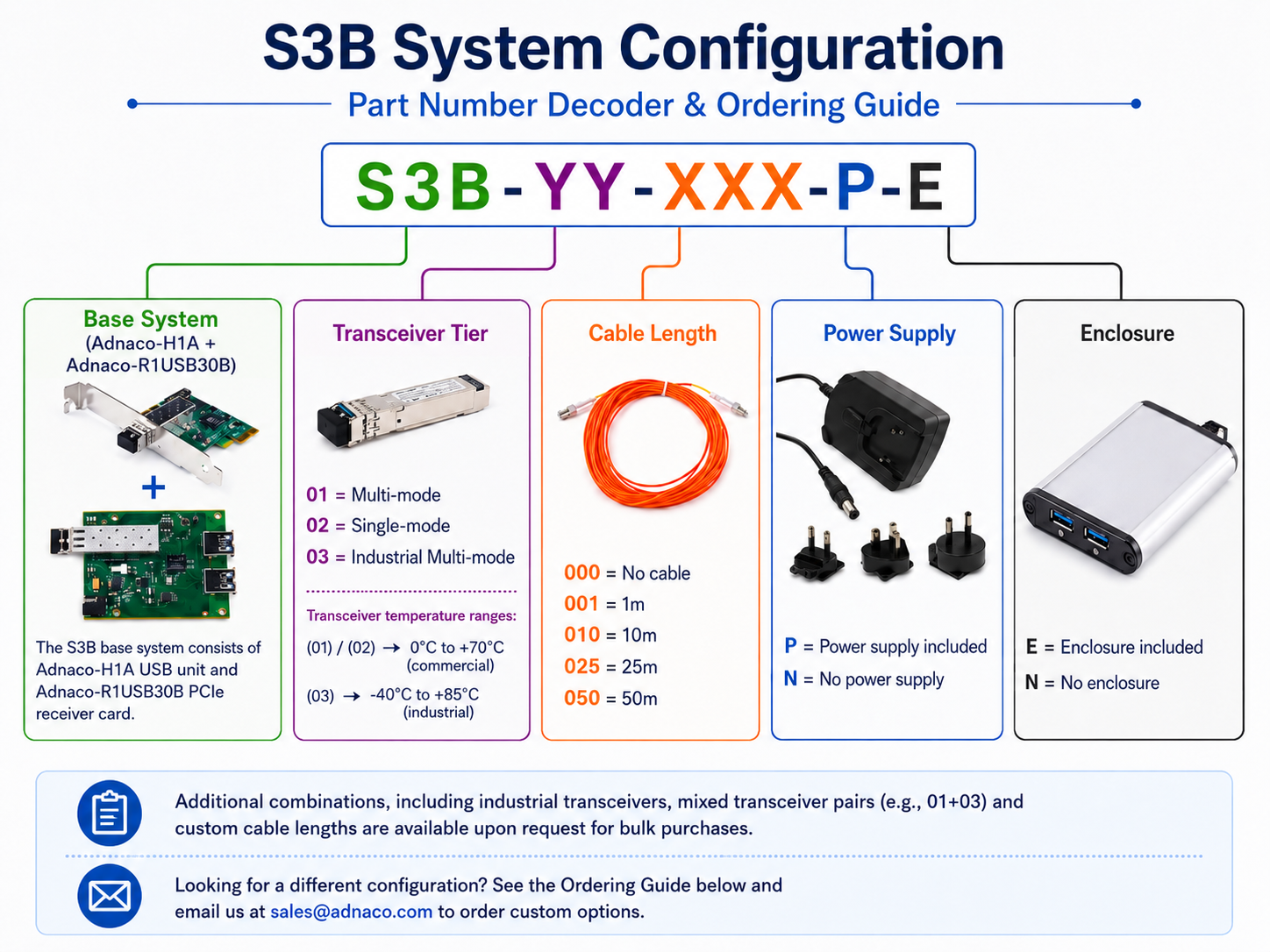

ORDERING GUIDE

Transceiver	Cable Lengths (XXX)	Accessories	Code Pattern
Multi-mode (01)	000 / 010 / 025 / 050 / 100	P + E	S3B‑01‑XXX‑P‑E
Single mode (02)	000 / 010 / 025 / 050 / 100	P + E	S3B‑02‑XXX‑P‑E
Industrial Multi‑mode (03)	000 / 010 / 025 / 050 / 100	P + E	S3B‑03‑XXX‑P‑E
Multi-mode (01)	000 / 010 / 025 / 050 / 100	None (N)	S3B‑01‑XXX-N
Single mode (02)	000 / 010 / 025 / 050 / 100	None (N)	S3B‑02‑XXX-N
Industrial Multi‑mode (03)	000 / 010 / 025 / 050 / 100	None (N)	S3B‑03‑XXX-N

Notes:

· P = power supply included

· E = enclosure included

· Transceiver temperature ranges:

o (01) / (02) → 0°C to +70°C (commercial)

o (03) → -40°C to +85°C (industrial)

· Additional combinations, including industrial transceivers, mixed transceiver pairs (e.g., 01+03) and custom cable lengths are available upon request for bulk purchases.

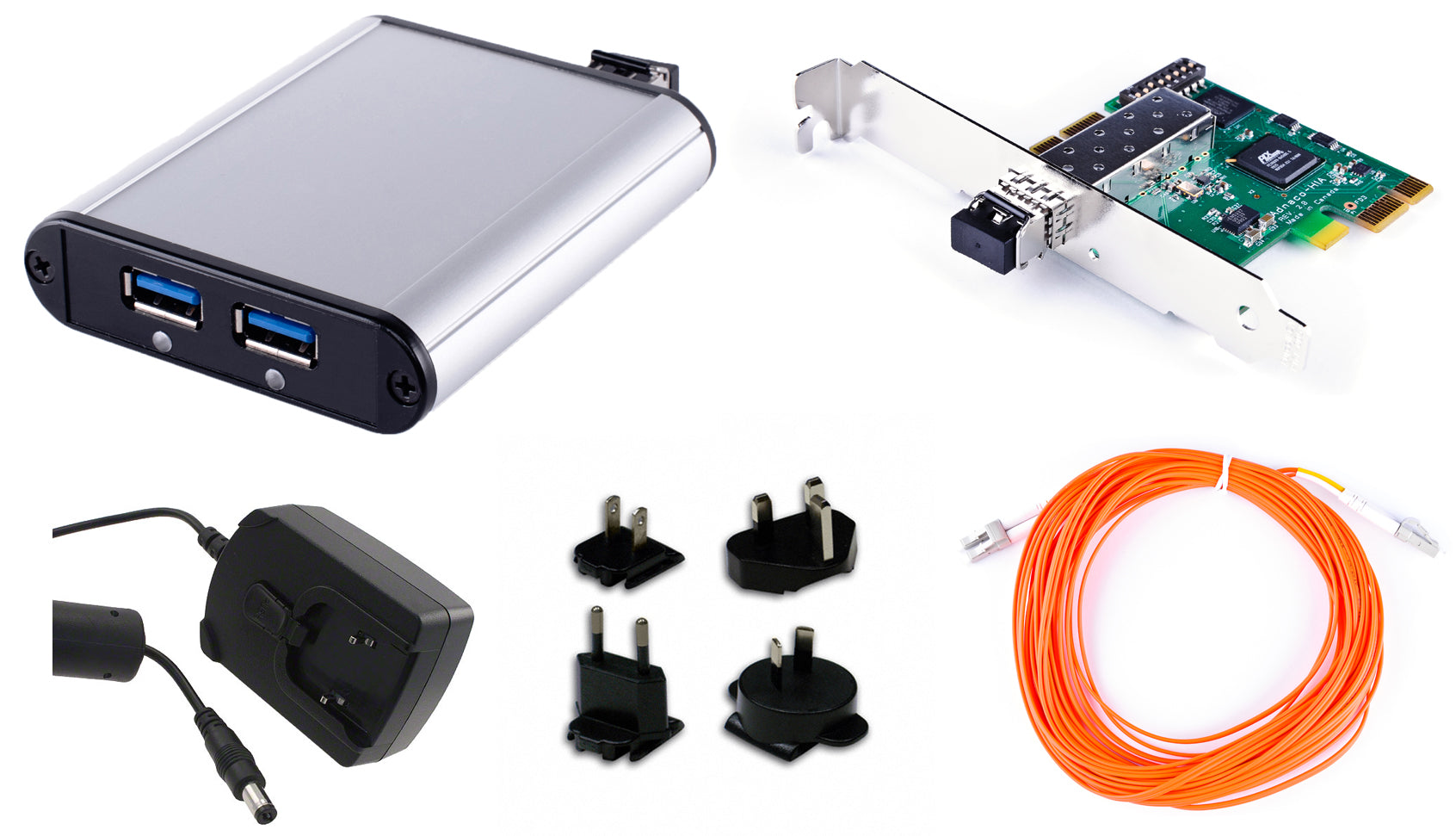

SYSTEM CONSISTS OF

• Adnaco-H1A: host adapter
• Adnaco-H1-LP: low profile bracket for H1A
• Adnaco-R1USB30B-E: remote USB host adapter in enclosure (encl. optional)
• Adnaco-FC1: LC-LC duplex fiber optic cable (optional)
• Power supply with interchangeable AC plugs: NA, EU, UK, AU (optional)

PRODUCT FEATURES

2 USB ports compliant with the USB 3.0 specification
Each USB port supports Super-Speed (5.0 Gbps), High-Speed
(480 Mbps), Full-Speed (12 Mbps) and Low-Speed (1.5 Mbps) data rates
TI TUSB7320 USB host controller
Communication over LC-LC fiber optic cable using x1 PCIe
lane at 5.0 GT/s data rate
Standard pluggable SFP+ transceivers
Maximum operating temperature (depending on the
transceiver): -40° to +85° C
Processor and OS independent and tested with:
- Windows x86/x64: XP, 7, 8, 8.1, 10, and 11
- Linux x86/x64, ARM 32/64-bit
- VxWorks
