Adnaco-S5: 20 Gb/s PCIe Gen 2 Over Fiber Optic Expansion System
Product description:
The Adnaco-S5 Gen2 20GT/s PCIe Expansion System allows system integrators to operate one PCIe x1, x4, x8 and x16 Gen1/Gen2 add-in card over fiber optic cable at distances up to 500+ meters from the location of the computer system. No additional host software drivers are required during installation or operation. Any type of PCI Express cards can be used including audio, video, graphics, USB, FireWire, SATA, data-acquisition, network and others.

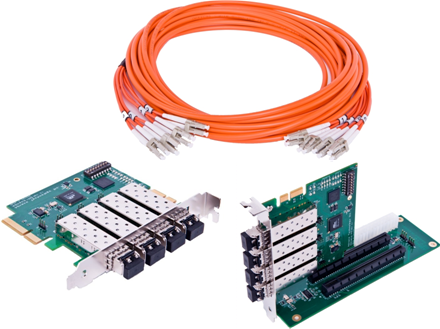

System consists of:
|

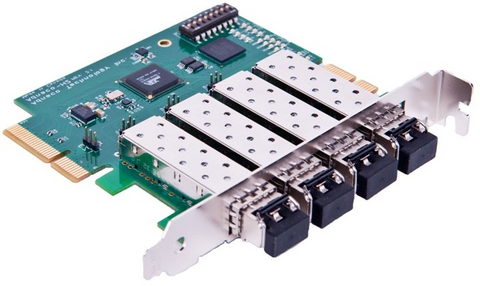

Adnaco-H2-01-H |
Host Adapter with 4 multi-mode transceivers and standard height bracket – 1 pcs |
|

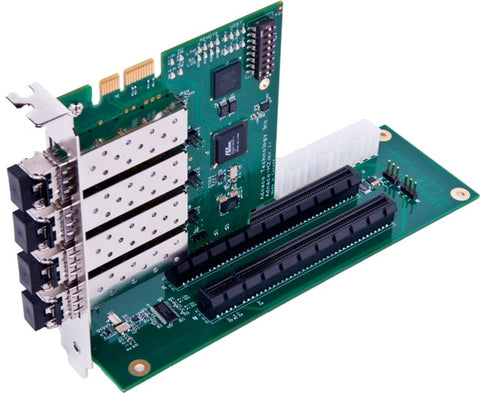

Adnaco-H2-01-R |
Remote Adapter with 4 multi-mode transceivers and standard height bracket – 1 pcs |
|
Adnaco-RT4 |
Backplane: single universal PCIe slot compatible with x1, x4, x8, and x16 cards – 1 pcs |
|
Adnaco-FC1-4 |
Fiber optic cable – optional
|
Product Features:
· Backplane with 1 PCIe x16 slot (electrical x4)
· 20 GT/s date rate over fiber optic using 4 PCIe Gen 2 lanes
· Optical isolation
· Standard pluggable SFP+ transceivers
· Backplane can be mounted in any standard ATX or microATX case
· Operating temperature: -40° to +85° C
· Processor and OS independent and tested with:
o Windows x86/x64: XP, 7, 8, 8.1, 10, 11
o Linux x86/x64
o VxWorks
For configurations that are not listed, please see the Adnaco-S5 Datasheet and contact us for additional details.
Data-transfer performance depends on the cable length. The measured performance is shown in the Adnaco Products Performance Guide application.
Specifications & Datasheets:
Adnaco Products Performance Guide
Detail system information: adnaco.com/products/s5/
For other configurations, please see Adnaco-S5 Datasheet or contact us at adnaco.com/contact-us/
