Adnaco-S3B USB 3.0 Extension
Product Description:
The Adnaco-S3B system includes a remote standard USB 3.0 host controller that can operate at distances up to several kilometers (depending on the types of transceivers and cables, contact us for details) from the location of your computer. Powered by Adnaco PCIe over-fiber-optic technology, the Adnaco-S3B is designed to suit many applications with the standard USB 3.0 host interface.

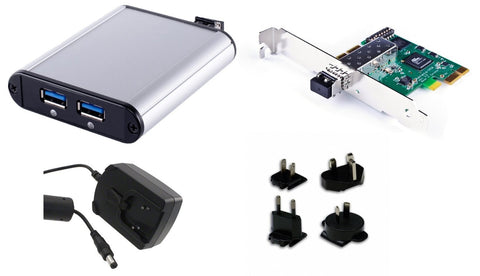

System consists of:
|
Adnaco-H1A-01 |
Host Adapter with multi-mode transceiver and standard height bracket – 1 pc |
|

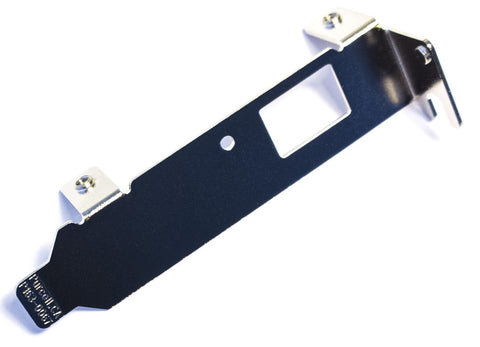

Low profile bracket |
For Adnaco-H1A host adapter – 1 pc |
|

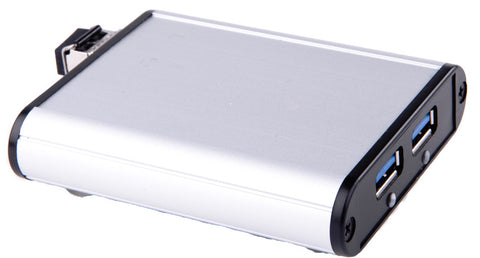

R1USB30B-01-E |
USB 3.0 Remote Adapter in enclosure with multi-mode transceiver – 1 pc |
|
Power Supply |
With interchangeable AC plugs: NA, EU, UK, AU – 1 pc
|
|

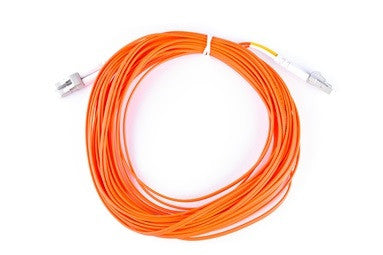

Adnaco-FC1 |
Fiber optic cable – optional
|
Product Features:
· 2 USB ports compliant with the USB 3.0 specification
· Each USB port supports Super-Speed (5.0 Gbps), High-Speed (480 Mbps), Full-Speed (12 Mbps) and Low-Speed (1.5 Mbps) data rates
· TI TUSB7320 USB host controller
· Communication over LC-LC fiber optic cable using x1 PCIe lane at 5.0 GT/s data rate
· Standard pluggable SFP+ transceivers
· Maximum operating temperature (depending on the transceiver): -40° to +85° C
· Processor and OS independent and tested with:
o Windows x86/x64: XP, 7, 8, 8.1, 10, and 11
o Linux x86/x64, ARM 32/64-bit
o VxWorks
Cable Information:
Multi-mode fiber optic transceivers and cable:
· 100+ m with OM2 cable
· 300+ m with OM3 cable (contact us for details)
· 500+ m with OM4 cable (contact us for details)
Single-mode fiber optic transceivers and cable:
· 2+ km with OS1 cable (contact us for details)
For configurations that are not listed, please see the Adnaco-S3B Datasheet and contact us for additional details.
Data-transfer performance depends on the cable length. The measured performance is shown in the Adnaco Products Performance Guide application.
Specifications & Datasheets:
Adnaco Gen 2 Systems User’s Guide
Adnaco Products Performance Guide
Detail system information: adnaco.com/products/s3/
For other configurations, please see Adnaco-S3B Datasheet or contact us at adnaco.com/contact-us/
